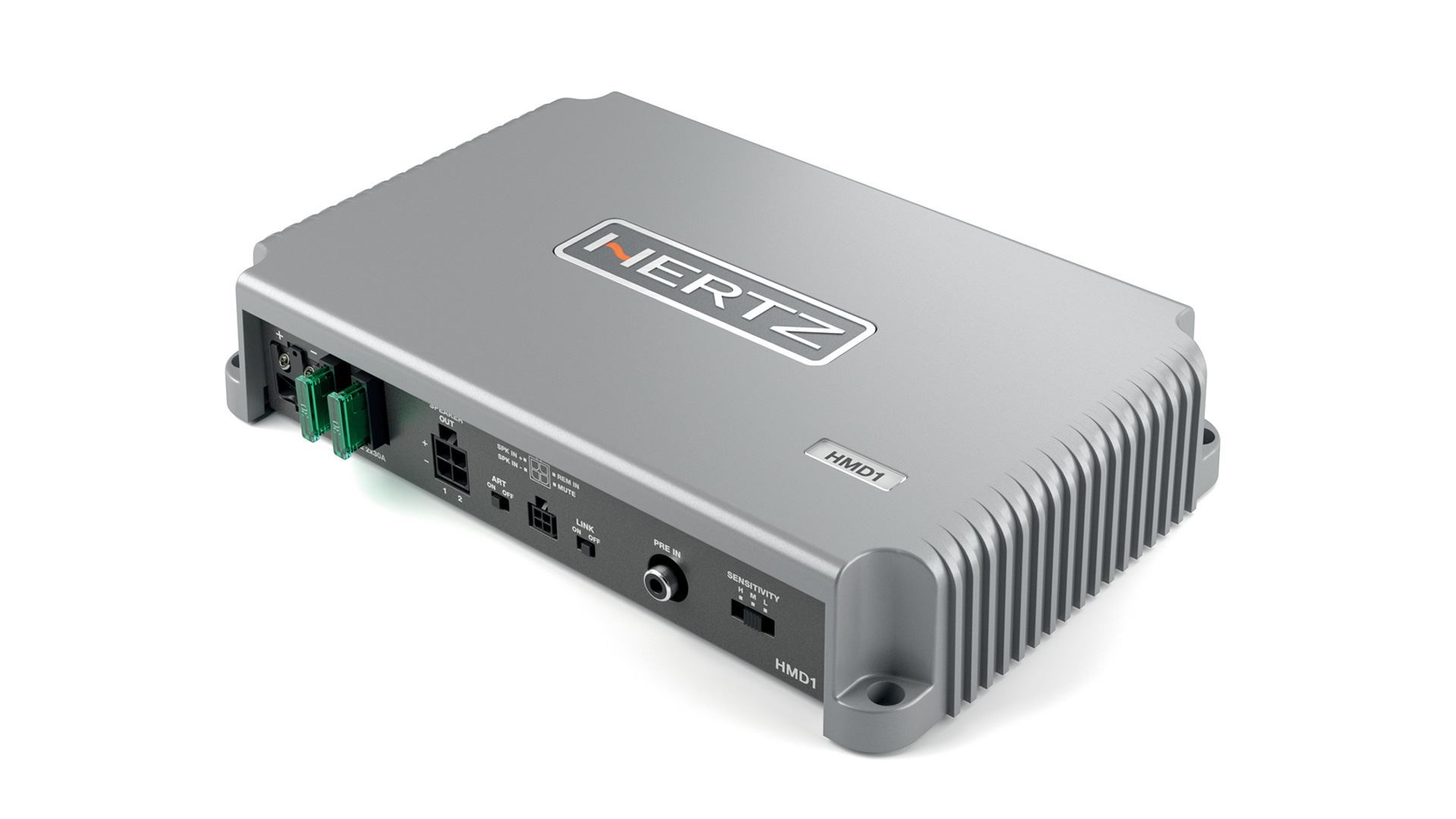

HMD1 mono amplifier is the perfect solution to add one or more marine subwoofer to your vassel, being the ideal power extension of HMD8 DSP. At 1 Ohms it is stable and can supply up to 1000 W of power with extremely compact dimension.
Availability:
Available Now
888.00 €
799.00 €
The HMD1, rich new highs of listening pleasure during navigation. DSP user friendly PC-Software interface make the setup process a breeze, exploiting every single pills of performance from the installed speaker system. The amazing power at 1 Ohms it is stable and can supply up to 1000 W of power with extremely compact dimension the capability to drive with authority the complete speaker system generating tons of clear SPLl. “Power for the Waves” design philosophy features a sturdy enclosure made of extruded aluminum with an anti-corrosion treated PCB to ensure years of listening pleasure in open water.
Specifications:
Channel mode: 1
Output Power (RMS): 1Ch @ 4ohm 500 W
@28.8 VDC, 1% THD 1Ch @ 2ohm 800 W
1Ch @ 1ohm 1000 W
|
Input sensitivity Pre-In
|
Selectable: 0.6 – 2.0 – 6.0 VRMS
|
|
Input sensitivity Speaker-In
|
Selectable: 2.0 – 6.5 – 20 VRMS
|
Filters:
Bypass: No
Hi-Pass: No
Lo-Pass: No
Band-Pass: No
Subsonic: No
Distortion-THD: 0.1%
(100Hz @ 4ohm)
S/N Ratio: 110 dBA
(A weighted @ 1V)
Damping factor: 140
(100Hz @ 4ohm)
Size W x D x H: 243 x 48 x 159 / 9.56 x 1.8 x 6.25
mm (in.)
